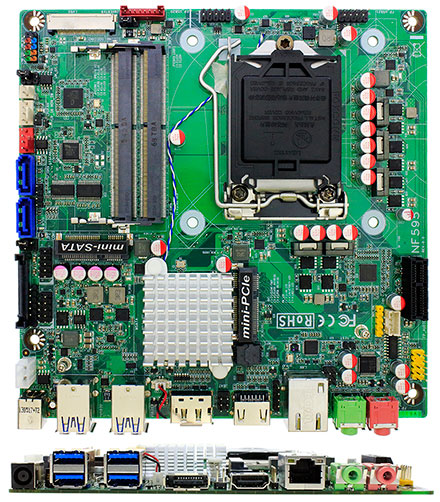

Jetway NF595-H110 (Intel H110 Skylake)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF595-H110 (Intel H110 Skylake)

  • Intel® H110 Express Chipset
  • Supports Intel LGA 1151 Socket Core™ i3, i5, i7 Pentium Processors (TDP ≤65 W)
  • 2 * Dual Channel DDR4 2133MHz up to 32GB
  • Support Intel i219V GbE LAN
  • Support PCIe x1 slot
  • 2 * SATAIII (6.0Gb/s)
  • HDMI/ DP/LVDS Video Outputs (eDP Options)
  • Integrated Realtek ALC662VD Audio Codec
  • Built-in Watchdog Timer Technology
  • +19V DC-in PWR jack
  • Thin Mini-ITX Form Factor (170mm * 170mm)


Share

RAM :

SSD (mSATA):

Build/Install:
 Form Factor
Dimensions - Thin Mini-ITX (170 * 170mm)
 Processor System
CPU - Intel LGA 1151 Socket Core i7/i5/i3/Pentium Processor (TDP ≤65 W)
Core Number - (by CPU)
Max Speed - (by CPU)
L2 Cache - (by CPU)
Chipset - Intel H110 Express chipset
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (full size)
mSATA - 1 (full size)
PCIe - 1 x1
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - DDR4 2133MHz Dual CH
Max. - 32GB
Socket - 2 * SO-DIMM
 Graphics
Controller - (by CPU)
VRAM - Shared Memory
VGA - 0
LVDS - 1 * Onboard 24-bits dual channel connector
HDMI - 1 (1.4a) Max. Resolution: 1920*1080@60Hz
DVI-D - 0
DisplayPort - 1 (1.2) Max. Resolution: 4096*2304@60Hz
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: INI219V
Connector - 1 * RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - 4 Channel
 SATA
Max Data Transfer Rate - 2 * SATAIII (6.0Gb/s)
 Rear I/O
VGA - 0
DVI-D - 0
HDMI - 1
DisplayPort - 1
Ethernet - 1
USB - 4 * USB 3.0
Audio - 2 (MIC / Line-out)
Serial - 0
eSATA - 0
PS2 - 0
DC-input - 1 * 19V DC-in
 Internal Connector
USB - 4 * USB 2.0
PS/2 - 1
LVDS / inverter - 1
VGA - 0
Serial - 2 (1 * RS232, 1 * RS232/422/485)
SATA - 2 * SATAIII (6.0Gb/s)
mPCIe - 1 (full size)
Parallel - 0
mSATA - 1 (full size)
CIR - 0
GPIO 8-bit - 0
Chassis intrusion - 1
Audio Header - 1
TPM - 1 (Option)
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - +19 DC-in (2-pin PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
