Jetway HBFDF632-7200-B (Intel Kabylake)

PRODUCT IS CURRENTLY NOT AVAILABLE !

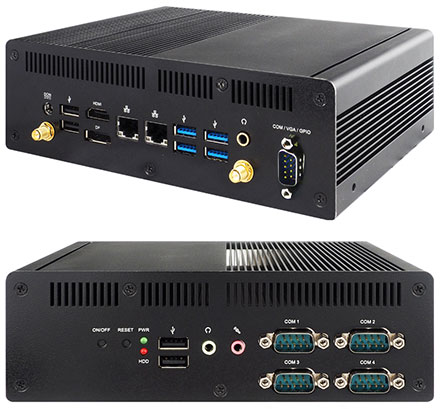

Jetway HBFDF632-7200-B (Intel Kabylake)

  • Intel® Skylake/Kabylake U Processor (TDP 15W)
  • Support 2* SO-DIMM DDR4-2133 , up to 32GB memory
  • 4 * USB2.0, 4 * USB3.0, 1 * HDMI, 1 * DP, 2 * RJ45, 1 * MIC, 1 * Line out
  • Support Max. 4K display resolution
  • DC-12V_60W FSP Adapter


Share

RAM :

SSD (mSATA):

OS:

Build/Install:
MB Model – JNF632(E)-7X00 / 3.5” SBC
– Core Number : i5-7200U / i5-7300U (Default)
BIOS – AMI 16MB SMT Flash ROM
CPU/Chipset – Intel® Skylake/Kabylake U Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
Memory – 2 * SO-DIMM slots DDR4-2133MHz up to 32GB
Storage – 1 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * Mini-PCIe (full size, shared with mSATA)
Network – 2 * Intel® GbE
– 1 * half-size Mini-PCIe slot (for WiFi expansion)
Rear Panel I/O – 2 * USB 2.0 , 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2160@24Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * COM or GPIO (Optional)
– 2 * Antenna holes (Optional)
– 1 * DC-In jack
Front Panel I/O – 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0 ports
– 1 * Line-out, 1 * MIC-in
– 4 * COM (Optional)
Power Source – FSP DC Adapter / DC12V-5A-60W / LV6
– AC 90~240V input
Compliance – CE, FCC, LVD, RoHS
Safety – Vibration test: N.C
– Shock test: N.C
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 193 (W) x 142.4 (D) x 62 (H) mm
Packing – Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS Support – 32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Year limited warranty
